IOT Verified Device
-
- IOT Verified Device

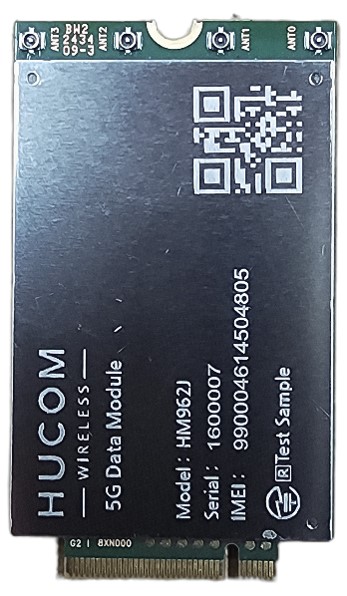

HM962J Dongwoo Finechem（HUCOM WIRELESS）
Spceifications
| Supported Frequency | LTE: B1, B3, B18, B26, B28, B41, B42 5G: n3, n28, n40, n41, n77, n78 |
|---|---|
| 5G SA | Supported |
| Category | LTE: Cat.19(DL)、Cat.18(UL) 5G: Rel.15 (Sub-6) |
| Supported Feature | Data Only |
| SIM Card | Size: Nano USIM Compatible SIM for KDDI Network: au Nano IC Card 04 au Nano IC Card 04 LE au Nano IC Card 05 |
Product summary
5G Communication Module
Compliant with 3GPP Release 16 LTE + 5G (NSA/SA, FR1)
M.2 Interface (USIM, USB, PCIe)
Maximum Data Rate:
NR SA (Sub-6 TDD 1CC, 100MHz, 256QAM)
DL 2.06Gbps / UL 0.9Gbps
NR NSA (LTE 16Layer 256QAM + NR 1CC 100MHz 256QAM)
DL 3.67Gbps (LTE:1.6 + NR:2.07) / UL 0.52Gbps (LTE:0.07 + NR:0.45)
Supports packet data communication, SMS messaging, and GNSS positioning
Inquiries
Company Name: DONGWOO FINECHEM CO., LTD.
Contact Person: Byoungwan HAN
Contact Information: bwhan@dwchem.co.kr
(+82-10-3729-1652

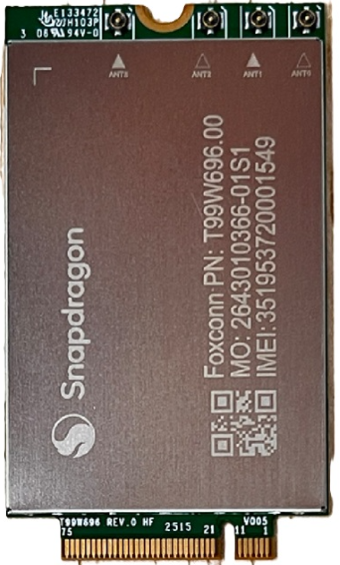

T99W696 Foxconn
Spceifications
| Supported Frequency | LTE: B1/3/18/26/28/41/42 5G: * NSA: n3/28/41/77 * SA: n3/28/40/41/77 |
|---|---|
| 5G SA | Supported |
| Category | DL: Cat.16 UL: Cat.13 |
| Supported Feature | Data Only |
| SIM Card | Size: Compatible SIM for KDDI Network: - au Nano IC Card 04 (LTE/NSA Normal edition) - au Nano IC Card 05 (For SA) |
Product summary
T99W696 is designed to enable wireless data connectivity for notebook computer or any
other device compatible with the PCI Express M.2 Specification 3052 type Key B slot.
T99W696 is the data card solution that delivers wireless wide-area network (WWAN)
connectivity for the 5GNR (Sub 6G only), LTE, UMTS (HSDPA/HSUPA/HSPA+DC-HSPA+)
and GPS/Glonass/ Beidou/ Galileo protocols in one hardware configuration.
Inquiries
Foxconn, Brady Lin,
brady.wc.lin@fii-foxconn.com,
+886986124111
EM9293 Semtech
Spceifications
| Supported Frequency | 5G: n3,n28,n40,n41,n77(ミリ波を除く、KDDI対応バンド全て対応) LTE: B1,B3,B18,B26,B28,B41,B42 |
|---|---|
| 5G SA | Supported |
| Category | Cat.20 |
| Supported Feature | Data Only |
| SIM Card | Size: - Compatible SIM for KDDI Network: au Nano IC Card 04 au Nano IC Card 04 LE au Nano IC Card 05 |
Product summary
- SDX65 based
- Release-16
- 300MHz of 5G NR and 20 layers of LTE
- Support GNSS
Inquiries
Semtech Japan
Sr.Manager Tak Goto
phone: 03-6381-5820
japan_sales@sierrawireless.com
Or please access https://www.sierrawireless.com/jp/5g/contact-sales/
EM9291 Semtech
Spceifications
| Supported Frequency | 5G: n3,n28,n40,n41,n77(ミリ波を除く、KDDI対応バンド全て対応) LTE: B1,B3,B18,B26,B28,B41,B42 |
|---|---|
| 5G SA | Supported |
| Category | Cat.20 |
| Supported Feature | Data Only |
| SIM Card | Size: - Compatible SIM for KDDI Network: au Nano IC Card 04 au Nano IC Card 04 LE au Nano IC Card 05 |
Product summary
- SDX62 based
- Release-16
- 120MHz of 5G NR and 16 layers of LTE
- Support GNSS
Inquiries
Semtech Japan
Sr.Manager Tak Goto
phone: 03-6381-5820
japan_sales@sierrawireless.com
Or please access https://www.sierrawireless.com/jp/5g/contact-sales/
Telematics Control Unit (TFHOBDBI0F3) LG Electronics
Spceifications
| Supported Frequency | LTE: B1/B3/B18/B26/B28/B41/B42 5G: n3/n28/n41/n78/n77 WCDMA: Not Supported |
|---|---|
| 5G SA | Supported |
| Category | Cat.12 |
| Supported Feature | Voice Call/Data Support |
| SIM Card | (1)MFF2 format eSIM (2)Size:5mm x 6mm |
Product summary
Telematics Control Unit (TFHOBDBI0F3) for SHM(Sony Honda Mobility) Vehicle.
It supports 5G cellular communication in the base according to 3GPP release 15 standard
and remote services & Helpnet cal.
Inquiries
LG Electronics
Hwansik Jang
hwansik.jang@lge.com
82-10-7524-1219
AMM7101 AM Co., Ltd.
Spceifications
| Supported Frequency | LTE: B1/3/18/26/28/41/42 5G: n3/28/41/77/78 |
|---|---|
| 5G SA | Supported |
| Category | Cat.11 (DL Cat.19, UL Cat.5) |
| Supported Feature | Data Only |
| SIM Card | Size: - Compatible SIM for KDDI Network: au Nano IC Card 04 au Nano IC Card 04 LE au Nano IC Card 05 |
Product summary
· 5G 通信モジュール
. 3gpp Rel15 4G,5G (FR1) Module
· M.2 インターフェース(USIM, USB, PCIe)
· 通信速度(最大):
NR SA(Sub-6 TDD 1CC, 100 MHz 256 QAM)
DL2.06Gbps／UL0.9Gbps
NR NSA(LTE 16Layer 256QAM, NR 1cc 100MHz 256QAM)
DL3.67(LTE:1.6,NR:2.07)/UL0.52(LTE:0.07,NR:0.45)Gbps
· パケット通信、SMS、GNSS
Inquiries
AM Solution Co.,Ltd
TEL: 03-6257-3834
E-Mail : amjapan@amtel.co.jp
AMM7100 AM Co., Ltd.
Spceifications
| Supported Frequency | LTE: B1/3/18/26/28/41/42 5G: n3/28/41/77/78 |
|---|---|
| 5G SA | Supported |
| Category | Cat.11 (DL Cat.19, UL Cat.5) |
| Supported Feature | Data Only |
| SIM Card | Size: - Compatible SIM for KDDI Network: au Nano IC Card 04 au Nano IC Card 04 LE au Nano IC Card 05 |
Product summary
· 5G 通信モジュール
. 3gpp Rel15 4G,5G (FR1) Module
· M.2 インターフェース(USIM, USB, PCIe)
· 通信速度(最大):
NR SA(Sub-6 TDD 1CC, 100 MHz 256 QAM)
DL2.06Gbps／UL0.9Gbps
NR NSA(LTE 16Layer 256QAM, NR 1cc 100MHz 256QAM)
DL3.67(LTE:1.6,NR:2.07)/UL0.52(LTE:0.07,NR:0.45)Gbps
· パケット通信、SMS、GNSS
Inquiries
AM Solution Co.,Ltd
TEL: 03-6257-3834
E-Mail : amjapan@amtel.co.jp
RW350R-GL Rolling Wireless S.à r.l.
Spceifications
| Supported Frequency | LTE: B1/2/3/4/5/7/8/12/13/14/17/18/19/ 20/25/26/28/29/30/32/38/39/40/41/42/ 43/46/48/66/71 5G: n1/2/3/5/7/8/20/25/26/28/30/38/40/ 41/48/66/71/77/78/79 WCDMA: B1/2/4/5/8 |
|---|---|
| 5G SA | Supported |
| Category | Cat.19 |
| Supported Feature | Data Only |
| SIM Card | Size:- Compatible SIM for KDDI Network: - au Nano IC Card 05 - au Nano IC Card 04 - au Nano IC Card 04 LE |
Product summary
1. Small ,Slim M.2 form factor
2. High speed 5G data module , support Cat19 LTE ,LAA, ENDC, SA FR1
3. 4*4 MIMO supported
4. Globally certifications approval module
5. One World One SKU
Inquiries
Rolling Wireless S.à r.l.
Kenji Nishikawa
kenji.nishikawa@rollingwireless.com
+81-70-1813-2021
RMM-G1 Compal Electronics, Inc.
Spceifications
| Supported Frequency | LTE: B1/B3/B8/B18/B19/B26/B28/B41/B42 5G: n1/n3/n28/n41/n77/n78 WCDMA: N/A |
|---|---|
| 5G SA | Supported |
| Category | Cat.19 |
| Supported Feature | Data Only |
| SIM Card | Size: Compatible SIM for KDDI Network: - au Nano IC Card 05 - au Nano IC Card 04 - au Nano IC Card 04 LE |
Product summary
- MTK MT6880 ARM Cortex-A55 up to 1.5 GHz
- 5G Sub-6 FDD and TDD and SA & NSA operations
- Downlink
‧LTE CAT19, MAX 5CC, Peak Rate: 1.6Gbps
‧5G Sub-6G: NR 2CC + LTE 4CC, Peak Rate: 4.53 Gbps
- Uplink
‧LTE CAT18, MAX 2CC, Peak Rate: 211 Mbps
‧5G Sub-6G: NR 1CC + LTE 2CC, Peak Rate: 836 Mbps
- Rich NR Carrier Aggregation
- Driver support for Linux, Windows
Inquiries
Compal Electronics, Inc.
Charles Chang
charles2_chang@compal.com
DP25-42843-47 Foxconn
Spceifications
| Supported Frequency | LTE: B1/3/18/26/28/41/42 5G: n3/28/41/77/78 |
|---|---|
| 5G SA | Supported |
| Category | DL: Cat.20 UL: Cat.13 |
| Supported Feature | Data Only |
| SIM Card | Size:- Compatible SIM for KDDI Network: - au Nano IC Card 04 (LTE/NSA Normal edition) - au Nano IC Card 05 (For SA) |
Product summary
DP25-42843-47(QCT SDX72) module is designed to enable wireless data connectivity for notebook computer or any other device compatible with the PCI Express M.2 Specification 3052 type Key B slot. T99W640 is the data card solution that delivers wireless wide-area network (WWAN) connectivity for the 5GNR (Sub 6G only), LTE, UMTS (HSDPA/HSUPA/HSPA+DC-HSPA+) and GPS/Glonass/ Beidou/ Galileo protocols in one hardware configuration.
Inquiries
Foxconn,
Brady Lin,
brady.wc.lin@fii-foxconn.com,
+886986124111
