IOT完了製品

製品概要

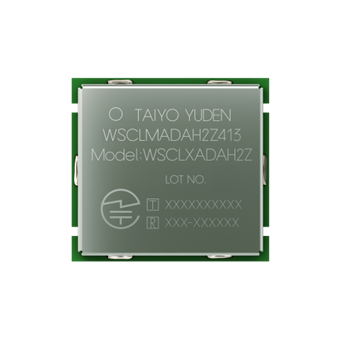

セルラーIoTモジュールWSCLMADAH2Zは、
Altair　semiconductorALT1250を搭載したマルチキャリア対応のCat-M1モジュールです。従来のカード型SIMに加えeSIMにも対応しています。
当社の高密度実装技術により15 x 14mmの超小型パッケージを実現しています。
低電圧設計により2.3Vの最低動作電圧を実現したことで、3V電池運用を可能としています。

製品概要

LGA Type
KDDI LTE Cat.M1 Band18
SRD 920MHz
USIM Interface (Only 1.8V)
UART x2 2Wire(TXD, RXD)
GPIO x16
ADC x2
KEY x4 SHUTDOWN, WAKEUP0, WAKEUP1,
POWER_BUTTON
STATUS x2 SLEEP, IP_PUSH
Power: Typ. 3.7V (2.3V ~ 4.35VDC
Operatin Temp: -40℃～+85℃
Storage Temp: -40℃～+90℃
Dimension: 13 x 13 x 1.7 [mm]

製品概要

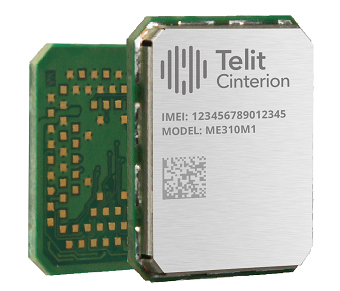

Telit Cinterion　LTE Cat M/NB-IOTモジュール
超低消費電流のeDRX, PSM機能を搭載し、優れたバッテリー駆動を実現
Short range通信も実装しており幅広いUsecaseにも対応

製品概要

LTE CAT-M1、GNSS、SMS対応
業界最低消費電力（eDRXモード:10uA/typ.以下）
弊社既存製品HL7800とHW/SWコンパチブル
SubGHz通信対応(uBus Air Spec2（既存uBus Air機器とのデモ可）/ Enhanced HAN 等対応可)
Customize Application実装可能（Application MCU内蔵）
衛星を用いたNTN通信対応可
3GPP Release Rel14－17(2045年以降まで対応可能)

製品概要

BG770A-GL is a 5G-ready ultra-compact LPWA module compliant with 3GPP E-UTRA Release 13/14 specification. The module supports LTE Cat M1 bands. Besides, it features ultra-low power consumption implemented by MIPS 5150 processor and integrated RAM and flash, which help reduce current consumption to rather low levels in various modes, including PSM, eDRX etc. It is further integrated with a GNSS engine that supports GPS and GLONASS systems and a cellular-based positioning engine that supports QuecLocator®.
BG770A-GL boasts a comprehensive hardware-based security feature - Integrated Security Elements (ISE). With an ultra-compact SMT form factor of 14.9 mm × 12.9 mm × 1.9 mm and a high integration level, the module enables integrators and developers to design applications easily leveraging its low power consumption and compact structure design. The BG770A-GL’s advanced LGA package allows for fully automated manufacturing required for large-scale applications. A rich set of Internet protocols, industry-standard interfaces and abundant functionalities extend the applicability of the module to a wide range of M2M applications, such as wireless POS, smart metering, tracking, wearable devices, and many more.
